kicker



Dear Peter,
  I was considering the statement that you made that we could obtain 38
kHz effective rate in an ideal world.  If our kicker were perfectly
effective and instantly deflected the beam whenever a muon passed through
it, then this would be true.  But, as you have shown, it takes time for
the signal to reach the kicker and it doesn't kick perfectly, so we lose some events due to pileup.

I have calculated the "ideal" rate we would observe in the case that no
sneakers exist, as well as the case that we actually have, where the full
beam is unsuppressed for ~550 ns and then we have some extinction factor
of 100.

I considered the possibilities that a muon is vetoed because a sneaker
comes in on the right (later times), or because the muon came in too close
to a sneaker during the previous fill.

I have not taken into account the increase in pileup veto due to the
muSCA/muSClo signals.

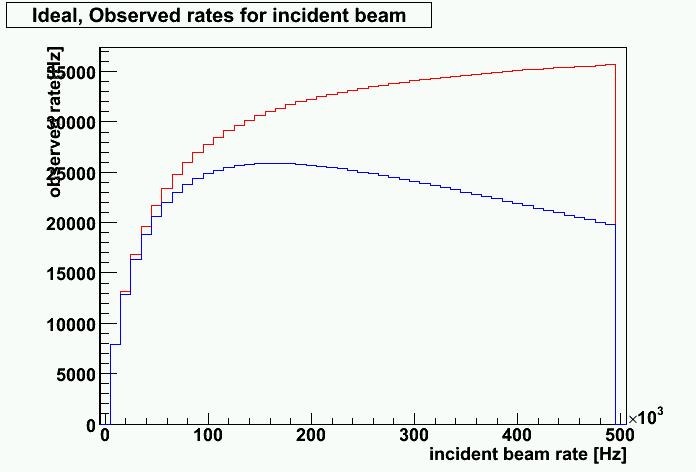

In the attachment, I have the ideal NPP rate in red, and the actual PP
observed rate in blue, as a function of incident unkicked rate.  For our
current running conditions we havea a kick fraction of 0.63 and a rate of
25 kHz, implying our beam is about 70 kHz incident.  This comes out to
some low 20s of kHz which is close to the 0.8 PP efficiency times the 25
kHz scaler 9.

Ultimately we still have a lot of room to imprve if we could increase the
beam rate by a factor of 2, but after that the returns are diminishing for
our physical setup, and the maximum PP rate is only about 25 kHz.  Mostly
I was just interested in seeing the maximum theoretical rate with our
setup.

Best Regards,
Brendan

Attachment: rates.png
Description: PNG image
