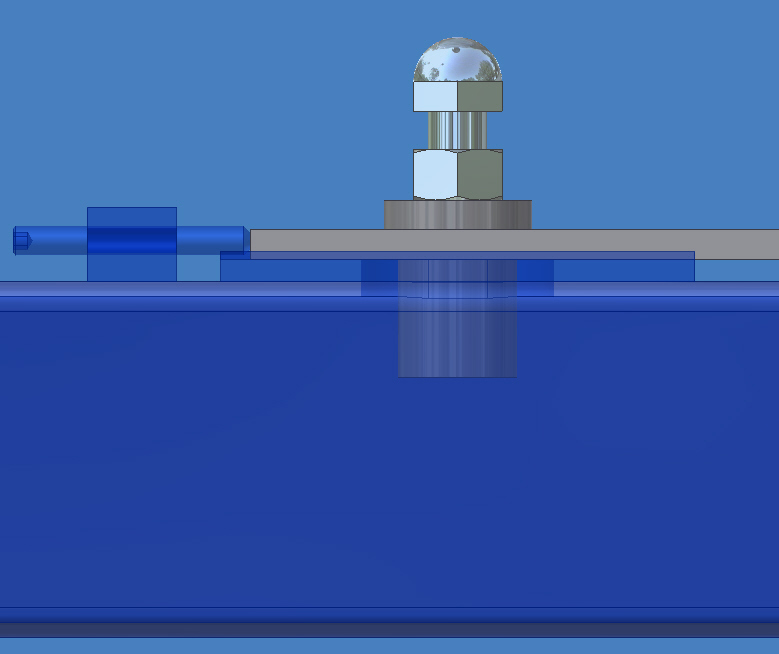

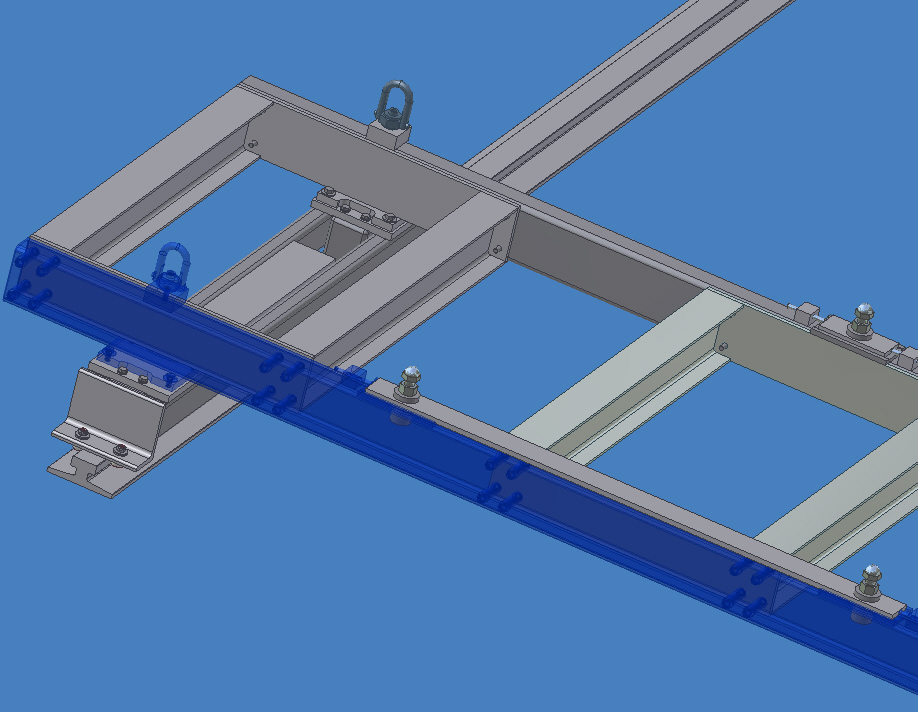

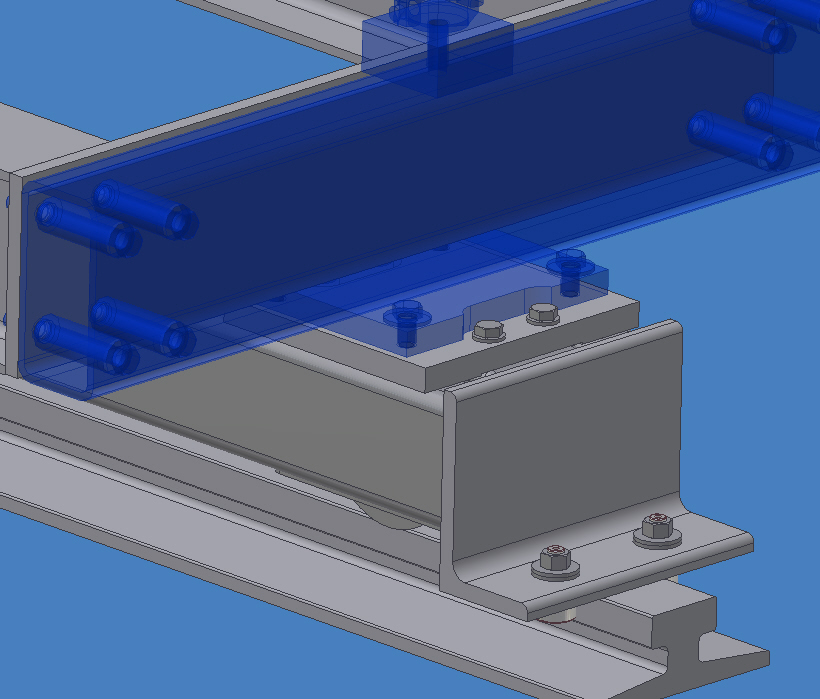

Dear Peter, I attached a few pictures from the CAD model. Please do not remove any bolt before Steve arrives, so that we can thoroughly discuss it. Please indicate in the pictures where you want to make a change. Best regards Peter On Thu, 13 Oct 2005, Peter Winter wrote: > Mulhauser Francoise wrote: > >> >> Dear Peter, >> >> At first view, your idea sounds nice. However, if anything like that is >> done, make sure that the survey group is taking the detector >> measurements AFTER such a work. Therefore, you may reach some time >> conflict there about. >> >> > Adrian already contacted the survey group and they are aware of this fact. I > just talked to Torsten from the survey and he doesn't see any reason against > this modification. But he needs to do the measurement of the detector on > Thursday. I told him the later the better for us but he will need the Friday > to calculate the results from the measurement and that is a necessary input > then for any further action on Monday. Therefore, I agreed to do the > measurement on Thursday. > Concerning the adjustment bolts we think of taking one out and inspect the > possibility for the lifting. > Peter > Peter Kammel / pkammel@uiuc.edu Department of Physics, Loomis Laboratory University of Illinois at Urbana-Champaign 1110 West Green Street, Urbana, IL 61801 Tel (217) 333-5424 / Fax (217) 333-1215
Attachment:
Description: JPEG image
Attachment:
Description: JPEG image
Attachment:
Description: JPEG image
